Samsung 6.5 Kg Front Loading Fully Automatic Washing Machine, WW65R22EK0S/TL

Name: Samsung 6.5 Kg Front Loading Fully Automatic Washing Machine, WW65R22EK0S/TL
Brand: Samsung
Price: 34500 INR
Availability: InStock
Rating: 0 (0 reviews)

MRP ₹37,500.00 (Inclusive of all taxes)8% OFF

Delivery Related

Apply

Please enter a pincode.

Read Return Policy

Manufacturer Warranty 3 Years

Free Shipping

Key Features

Wash Cool, Save Energy
Intensive Stain Removal
Work Smart, Stays Young
Diamond Drum, LED Panel Display

Notice any issues? Report here

Description
Wash Cool, Save Energy
Eco Bubble
Save a huge amount of energy* by washing large loads at low temperatures using Eco Bubble™ technology. Bubbles activate detergent, so it quickly penetrates fabric and removes dirt easily – even in cool water (15°C).

* This Samsung WW65R22EK0S WashingMachine image is for illustration purpose only. Actual image may vary.

Intensive Stain Removal
Bubbles Soak
With the touch of a button Bubble Soak technology helps remove a variety of stubborn stains, including blood and grass. Clothes are thoroughly soaked in bubbles, so stains are loosened and removed effectively.

* This Samsung WW65R22EK0S WashingMachine image is for illustration purpose only. Actual image may vary.

Works smart. Stays young

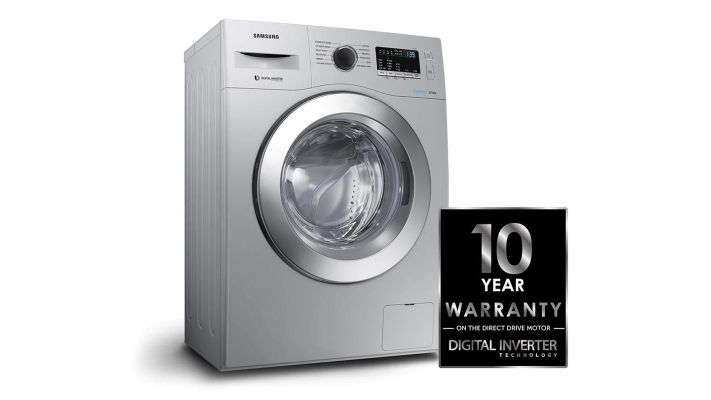

Digital Inverter Motor
A Digital Inverter Motor delivers superior energy efficiency, minimal noise and exceptionally long-lasting performance,so it's certified to work for 20 years* – backed-up by a 10 year warranty.

* This Samsung WW65R22EK0S WashingMachine image is for illustration purpose only. Actual image may vary.

Easy Troubleshooting

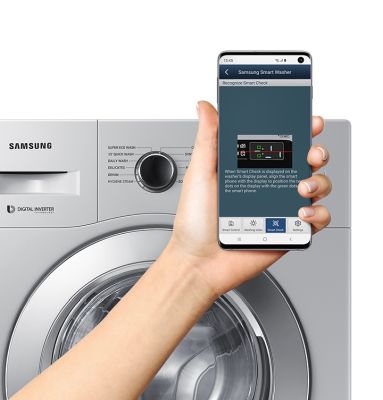

Smart Check
The Smart Check automatic error-monitoring system detects and diagnoses problems and provides easy troubleshooting solutions using a smartphone App.* So it saves you time and avoids the cost of engineer callouts!

* This Samsung WW65R22EK0S WashingMachine image is for illustration purpose only. Actual image may vary.

Chemical Free Drum Sanitization
Eco Drum Clean
For the ultimate in convenience, Eco Drum Clean technology keeps your front load washer fresh without using harsh chemicals. And it can even notify you automatically when it needs cleaning.

* This Samsung WW65R22EK0S WashingMachine image is for illustration purpose only. Actual image may vary.

Save Time on Smaller Loads

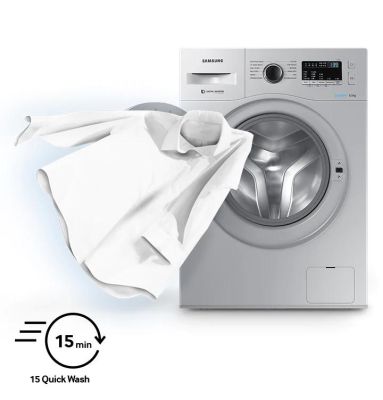

15’Quick Wash
The Quick Wash program is the perfect solution for your busy life – cleaning lightly soiled clothes quickly and efficiently,so you can enjoy more time for yourself.

* This Samsung WW65R22EK0S WashingMachine image is for illustration purpose only. Actual image may vary.

Gentle Fabric Care
Diamond Drum
The Diamond Drum's unique “soft curl” design with smooth, diamond-shaped ridges is supremely gentle on your clothes.Its small water exit holes also help protect fabric by preventing clothes from becoming trapped.

* This Samsung WW65R22EK0S WashingMachine image is for illustration purpose only. Actual image may vary.

Hygienically clean
Steam
Give your clothes a really deep and hygienic clean with steam. A powerful Steam cycle releases steam from the bottom of the drum. So every item in the load is thoroughly saturated. This removes engrained dirt and 99.9% of bacteria and inactivate allergens.

* This Samsung WW65R22EK0S WashingMachine image is for illustration purpose only. Actual image may vary.

Specifications
General Information
- Item Code
  491666732
- Brand
  Samsung
- Model
  WW65R22EK0S/TL
- Colour
  Silver
- Capacity
  6.5 kg
- Washing Machine Type
  Fully Automatic
Controls & Convenience
- Control Type
  Button + Dial
Technical Specifications
- Max. Spin Speed
  1200 RPM
Features
- Child Lock
  Yes
- Loading Type
  Front
- Recommended For
  Family of 4
Additional Features
- Features
  Bubble Technology, Bubble Soak

  Ceramic Heater, DIT Motor

  Quick Wash, Smart
  See More
In The Box & Warranty
- Warranty
  3 Years
Manufacturing & Packing Information
- Customer care address
  Reliance Digital, Reliance Retail Limited, 3rd Floor, Court House, Lokmanya Tilak Marg, Dhobi Talao,
  See More
- Customer care Phone
  1800-889-1055
- Country of origin
  India
- Customer care email
  reliancedigital@ril.com
- Name and address of Packer
  Samsung India Electronic Pvt Ltd., Plot No P-1, Sipcot Industrial Park Phase 2, Sriperumbudur, Kanch
  See More
- Name and address of Importer
  NA
- Net Weight
  59000 g
- Commodity name
  Washing Machine
- Item Length
  45 cm
- Item Width
  60 cm
- Item Height
  85 cm
- Net Quantity
  1 N
- Month and Year of Commodity First Manufactured/Imported/Packed
  April' 2020
- Name of Seller
  Reliance Retail Ltd.
- Name and address of Manufacturer
  Samsung India Electronic Pvt Ltd., Plot No P-1, Sipcot Industrial Park Phase 2, Sriperumbudur, Kanch
  See More
- Name and address of Marketed By
  Samsung India Electronic Pvt Ltd., Plot No P-1, Sipcot Industrial Park Phase 2, Sriperumbudur, Kanch
  See More

FAQs
What is Water Consumption per Wash?
The water consumption per wash varies according to the type of machine you are using. Here,the amount of water required for each washing machine is given below:

Here, L means litres.

Fully Automatic Top Load : 140 L

Note: The above details are generic however water consumption depends upon the specification of Washing Machine. To check the same kindly refer Specification and User Manual of your Washing Machine.

Samsung Washing Machine does not spin ?

Check the machine in empty condition - Please run spin mode in empty condition.
Drain pipe is not placed properly- If drain pipe is hanged or bent then please place it properly on the ground.

1. ESTIMATING THE LENGTH OF DRAIN HOSE

When there is no threshold (barrier), the length of the drain hose should not exceed 3m.

When it is necessary to connect the drain hose with the drain outlet located far away, connect the extension hose and applicable parts (available from dealers or service centers).
Do not install the drain hose where it must extend over a threshold of 5cm or more; do not install where there is a threshold (as shown below) and the hose must extend for more than 2m.

POSITIONING THE DRAIN HOSE

Do not put the end of the drain hose into the water.

Do not place the hose below the floor level of the drain outlet.

Do not make the mid part of the hose positioned higher than the ends.

3. CLEAN BLOCKED DRAIN PIPE

Drain pipe blocked - Remove and clean the drain pipe.

Steps to Clean Drain Pipe :

a) Please remove the Drain pipe and clean the pipe in running water.

b) After cleaning the pipe, while re-fixing, ensure that the drain pipe spreads straight to the drain hole with no obstacles higher than 5 cm in the way.

c) Please do not extend the drain pipe more than 3 m (metres).

Check the machine in empty condition - Post cleaning of drain pipe, check the tub in empty spinning condition (by pressing power > spin > start).

If issue does not resolve post performing the above steps then watch a below video.

If the issue is not solved by above mentioned steps, washing machine require service.

What to do when the Samsung Washing Machine unexpectedly stops?

If the washing machine stops unexpectedly, these are the following steps required:

1. Close the door firmly, select the desired cycle, and then press the start/Pause button to start the washer.

2. Verify the water supply valves are completely open.

3. Check the screen on the inlet hoses on the back of the washer and clean them if there are any obstructions.

4. Verify the debris filter is clean.

5. Verify the drain hose is not inserted more then 6 inches into the drain, stand pipe.

6. If the washing machine also turns off when it stops unexpectedly and perform all of the troubleshooting steps in the unit will not power on the article.

What to do when the washing machine vibrates excessively?

If the washing machine stops unexpectedly, these are the following steps required:

1. Close the door firmly, select the desired cycle, and then press the start/Pause button to start the washer.

2. Verify the water supply valves are completely open.

3. Check the screen on the inlet hoses on the back of the washer and clean them if there are any obstructions.

4. Verify the debris filter is clean.

5. Verify the drain hose is not inserted more then 6 inches into the drain, stand pipe.

6. If the washing machine also turns off when it stops unexpectedly and perform all of the troubleshooting steps in the unit will not power on the article.

What to do when the washing machine vibrates excessively?

[Cause]

This problem is usually caused by one of the following conditions,

The unit is not levelled.
Shipping bolts are not removed.

[Solution]

If washer is vibrating, do the following,

Make sure the shipping bolts are removed.
Make sure your washer is properly installed. Pay special attention to leveling, as it is crucial for minimizing vibration.
Check the load amount. A severely under loaded or overloaded washer will vibrate excessively. If you are washing one pair of jeans, add a few additional items to create a balanced load. If your washer is overloaded, try to remove a few items to create a balanced load.
Reposition the load. Sometimes the heavier items will bunch together and cause an unbalanced condition.

Note:

If your washer is set on a pedestal, it is very important that the washer places on its side only with the shipping bolts still installed to facilitate the installation. If your washer stands in any other position to facilitate the pedestal installation, it may cause vibration. Your washer is required help from the service center to remove vibration.
